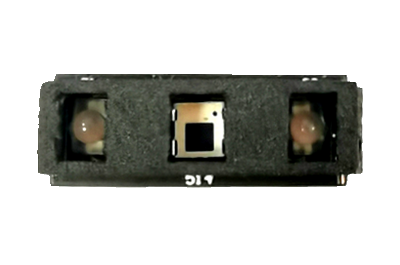

Obstacle Detection Sensor-04

    Intelligent infrared reflective inductive switch is controlled by MCU. It can be programmed online to meet the application requirements and use scenarios for different customers. This product integrates infrared receiver, transmitter, MCU, signal processing unit and output control unit. It has strong anti-photoelectric interference ability, stable and reliable performance and small size.

    This product is suitable for consumer products such as switch control of various household appliances, backlight control of display screen, Intelligent lock,intelligent bathroom, toys, obstacle avoidance of robots, counting of people/vehicles, counting of assembly line products, monitoring of object proximity, and other induction control scenarios.

    The induction distance and overall dimensions of this product can be customized according to customer requirements.


Instructions
Share To:
Obstacle Detection Sensor-04 · Product Features
Volume:
25mm*9mm*9.5mm;
Power consumption:
standby current is less than 2mA, and average working current is less than 4mA;
Sensing distance:
3-30cm,adjustable;
Light immunity:
strong immunity to ambient light.
Application Products Video Presentation
Product Main technical parameters

Main Parameter

Numerical Value

Unit

Remarks


Operating Voltage (DC)

3.0-5.5

V

Recommend: VDD=3.3V-5.0V


Average Working Current

4.0

mA

Test condition: VDD=5.0V


Infrared Wavelength

940

nm

IF=20mA


Signal Output Mode

GPIO

/

During standby: the pin signal is high level VDD;  When triggered: the pin signal is changed from high level VDD Change to low level signal 0V


Output Drive Current

10.0

mA

Test condition: VDD=5.0V


Outline Dimension

L*W*H   25*9*9.5

mm

/


Port

3P*1.0

mm

3P Horizontal SMT socket


Inductive Distance

d=3-30

cm

Test conditions: VDD=5VPanel transmittance ≥ 80%; See test method for details; When transparent glass or infrared panel is set in front of the sensor, the distance between the sample and the panel is ≤ 1 mm




Application Area
This product is suitable for consumer products such as switch control of various household appliances, backlight control of display screen, Intelligent lock,intelligent bathroom, toys, obstacle avoidance of robots, counting of people/vehicles.
