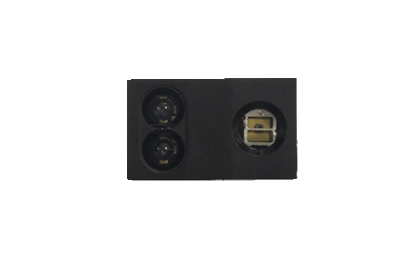

System-level Photoelectric Switch

        System-level photoelectric switch is controlled by microprocessor (MCU). It can be meet the application requirements and use scenarios for different customers. This product integrates infrared receiver, transmitter, MCU, signal processing unit and output control unit. It has strong anti-photoelectric interference ability, stable and reliable performance and small size.

        The dimensions of this product can be customized according to customer requirements.


Instructions
Share To:
System-level Photoelectric Switch · Product Features
1、Volume:
14mm×8.5mm×3.75mm;
2、Sensing distance:
5-100cm,High sensitivity;
3、Light immunity:
Strong immunity to ambient light;
Application Products Video Presentation
Product Main technical parameters

Main Parameter

Numerical Value

Unit

Remarks

Operating Voltage (DC)

3.0-5.5

V

Recommend: VDD=3.3V-5.0V

Infrared Wavelength

940

nm

IF=20mA

Signal Output Mode

GPIO

/

During standby: the pin signal is high level VDD;  When triggered: the pin signal is changed from high level VDD Change to low level signal 0V

Output Drive Current

10.0

mA

Test condition: VDD=5.0V

Outline Dimension

L*W*H   14*8.5*3.75

mm

/

Port

8Pin

mm

8 Patch pin

Inductive Distance

d=5-100

cm

Test conditions: VDD=5VPanel transmittance ≥ 80%; See test method for details; When transparent glass or infrared panel is set in front of the sensor, the distance between the sample and the panel is ≤ 1 mm

Sensing Angle

30

degree

/


Application Area
This product is suitable for various household appliances, such as multi-gesture logic function control, lighting fixture switch and brightness control, display backlight control, toys, intelligent trash cans, object motion direction recognition and other
Intelligent door lock
Display screen backlight control
Sweeping robot
Backlight display control
