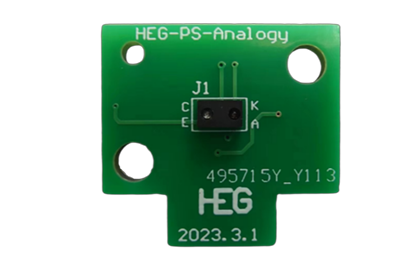

Analog Proximity Sensor

 Analog proximity sensor customers can input signals through MCU pins, And receives its feedback output signal. It can be meet the application requirements and use scenarios for different customers. This product integrates infrared receiver and transmitter, It has strong anti-photoelectric interference ability, stable and reliable performance and small size.

The induction distance and overall dimensions of this product can be customized according to customer requirements.

Instructions
Share To:
Analog Proximity Sensor · Product Features
1、Volume:
22.15mm×20.5mm×6.15mm;(Customizable)
2、Sensing distance:
2-10cm;(Customizable)
3、Light immunity:
strong immunity to ambient light.
Application Products Video Presentation
Product Main technical parameters

Main Parameter

Numerical Value

Unit

Remarks


Operating Voltage (DC)

3.0-5.5

V

Recommend: VDD=3.3V-5.0V


Infrared Wavelength

940

nm

IF=20mA


Signal Output Mode

GPIO

/

During standby: the pin signal is high level VDD;  When triggered: the pin signal is changed from high level VDD Change to low level signal 0V


Outline Dimension

L*W*H   22.15*20.5*6.15

mm

/


Port

4P*1.0

mm

4P Horizontal SMT socket


Inductive Distance

d=2-10

cm

Test conditions: VDD=5VPanel transmittance ≥ 80%; See test method for details; When transparent glass or infrared panel is set in front of the sensor, the distance between the sample and the panel is ≤ 1 mm




Application Area
This product is suitable for detecting static obstacles (or moving obstacles). such as table lamp switch and light and dark control,switch control of various household appliances, backlight control of display screen, Intelligent lock,intelligent bathroom,
Intelligent door lock
Display screen backlight control
Sweeping robot
Backlight display control
